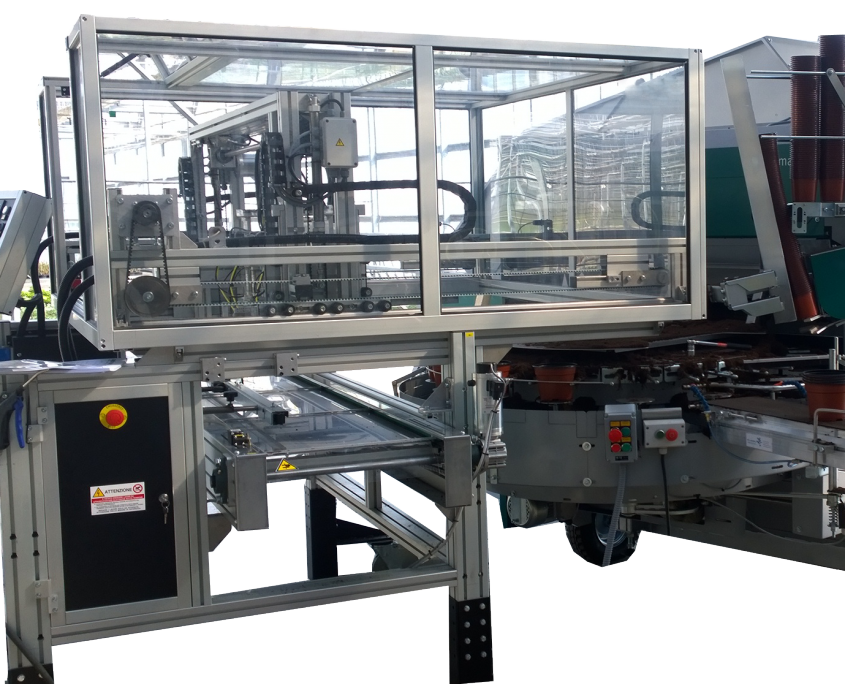

TEA 1500J and 2000J
The TEA 1500J and 2000J transplanters are especially designed for the connection and integration to pot fillers equipped with carousels and to all machines with a chain transport system of pots. Each gripper is individually motorized and it is possible to pick up the plants from the side. The machine parameters and the programs entered can be saved on a USB memory.
| Characteristics | 1500J | 2000J |
|---|---|---|
| Machine dimensions (LxLxH) | cm 194x320x210 | cm 203x420x210 |
| Weight | kg 650 | kg 700 |
| Power | kW 1 | kW 1 |
| Voltage | Volt 220/100 | Volt 220/100 |
| Air consumption | l/min 80 | l/min 80 |
| Nr. grippers | max. 12 | max. 16 |
| Productivity | Plant/hour for each gripper 1000 | Plant/hour for each gripper 1000 |
| pick up tray management | max. 2 trays | max. 3 trays |
| Max. tray dimensions | cm 40×60 | cm 40×60 |
